MQ042MG-CM

42MG
Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testing, OCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics

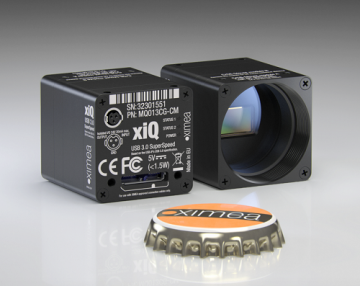

4.2 Megapixel Monochrome CMOS Camera with USB 3.0 Interface.

Check conditions for the Taped Cover Glass sensor model.

Specifications:
Resolution 4.2 MP 2048 × 2048 pixel
Sensor type CMOS Matrix B/W
Sensor model CMOSIS CMV4000
Sensor size 1"
Sensor active area 11.27 × 11.27 mm
Pixel size 5.5 µm
Bits per pixel 8, 10, (12)
Dynamic range 60 dB
Frame rates 90 fps
Image data interface USB 3.0
Data I/O GPIO IN, OUT
Power requirements 1.5 Watt
Lens mount C or CS Mount
Weight 32 grams
Dimensions WxHxD 26 x 26 x 30 mm
Operating environment 50 °C
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
