Scientific Cameras

High Frame

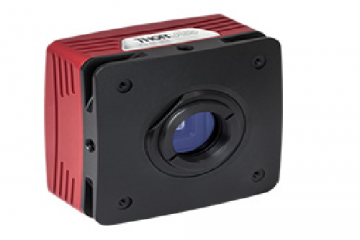

200 Frames per Second Camera for Scientific Imaging

  • Up to 200.7 Frames per Second (fps) for the Full Sensor (See Specs Tab for Details)
  • 1/3" Format, 640 x 480 Pixel (VGA) Monochrome CCD Sensor with 7.4 µm Square Pixels (On Semi / Truesense KAI-0340)
  • Software-Selectable 20 MHz or 40 MHz Readout: Maximize Frame Rate
    (40 MHz) or Minimize Noise (20 MHz)
  • 55% Peak Quantum Efficiency at 500 nm for Standard Version (See SpecsTab for Details)
  • 10% Peak Quantum Efficiency at 485 nm for UV Version (See Specs Tab for Details)
  • <15 e- Read Noise Improves the Threshold of Detectability Under Low Light Conditions
  • Asynchronous Reset, Triggered, and Bulb Exposure Modes (See Triggering Tab for Details)
  • ThorCam GUI with 32- and 64- Bit Windows® 7, 8.1, and 10 Support
  • Support for LabVIEW, MATLAB, µManager / ImageJ, and MetaMorph

Applications

  • Fluorescence Microscopy
  • Flow Cytometry
  • Ca2+ Imaging
  • UV Imaging
  • Particle Tracking
  • SEM/EBSD
